Heavy Duty Off Road Box Trailers.
Pricing: $24,500.

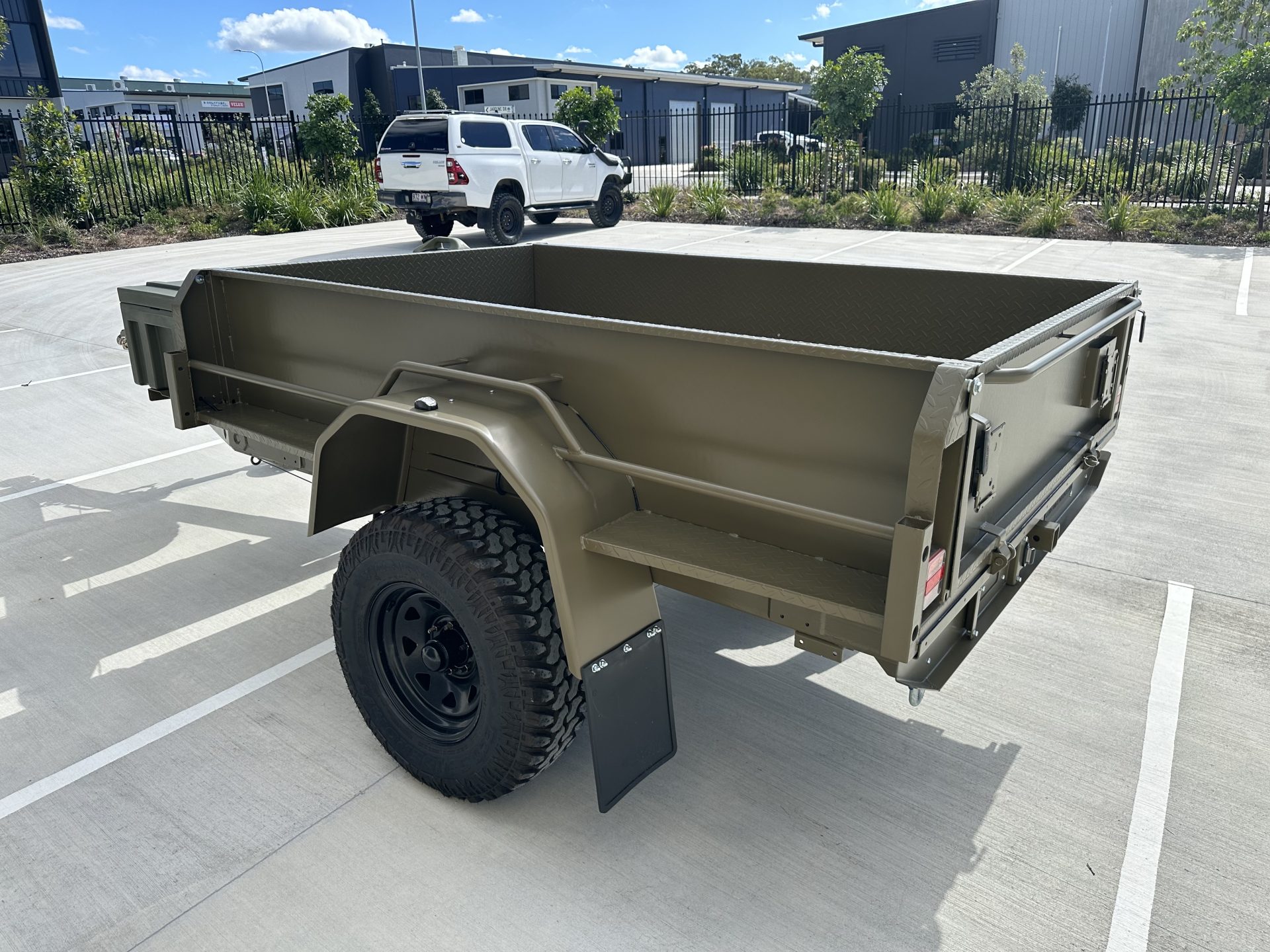

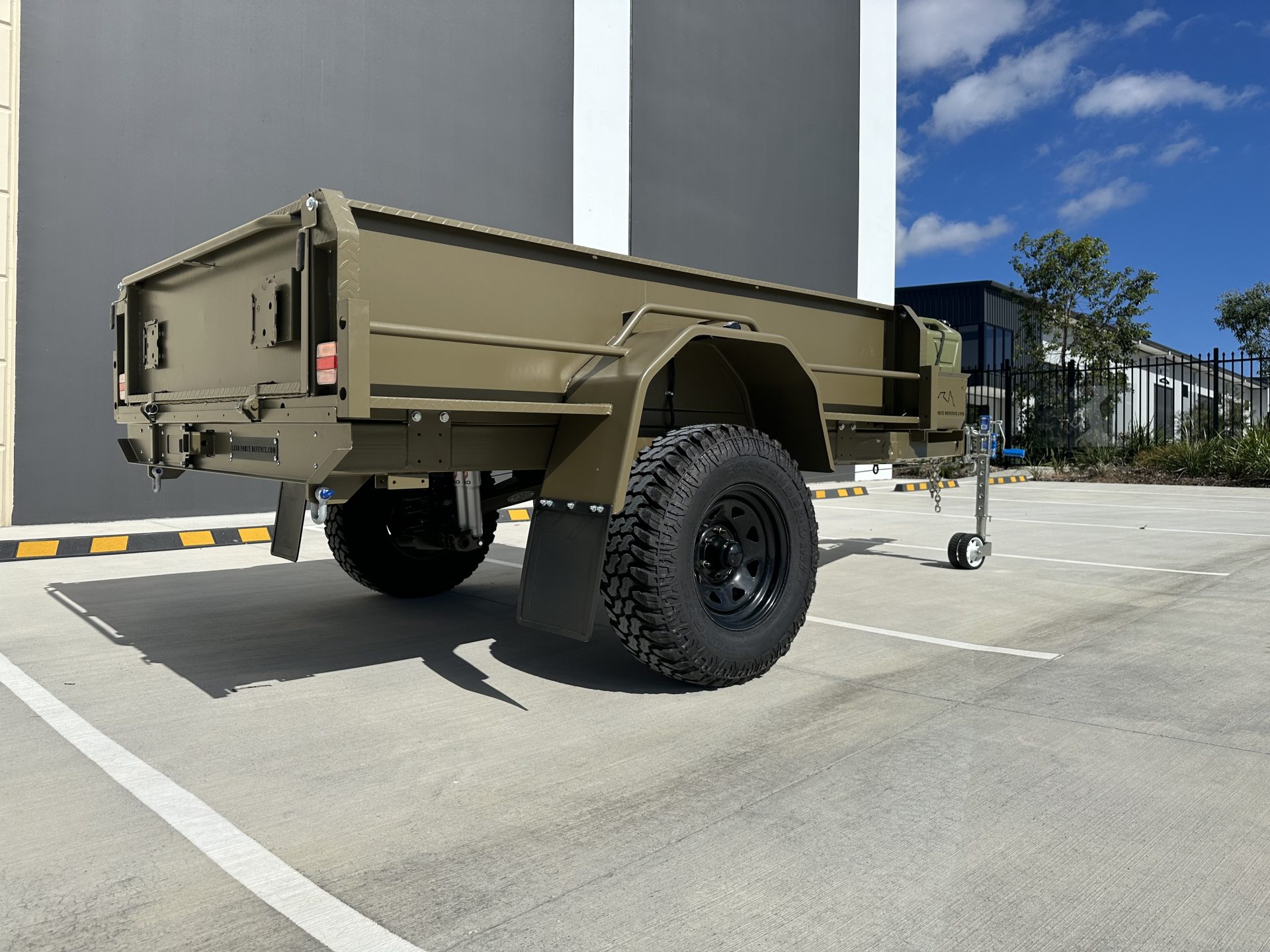

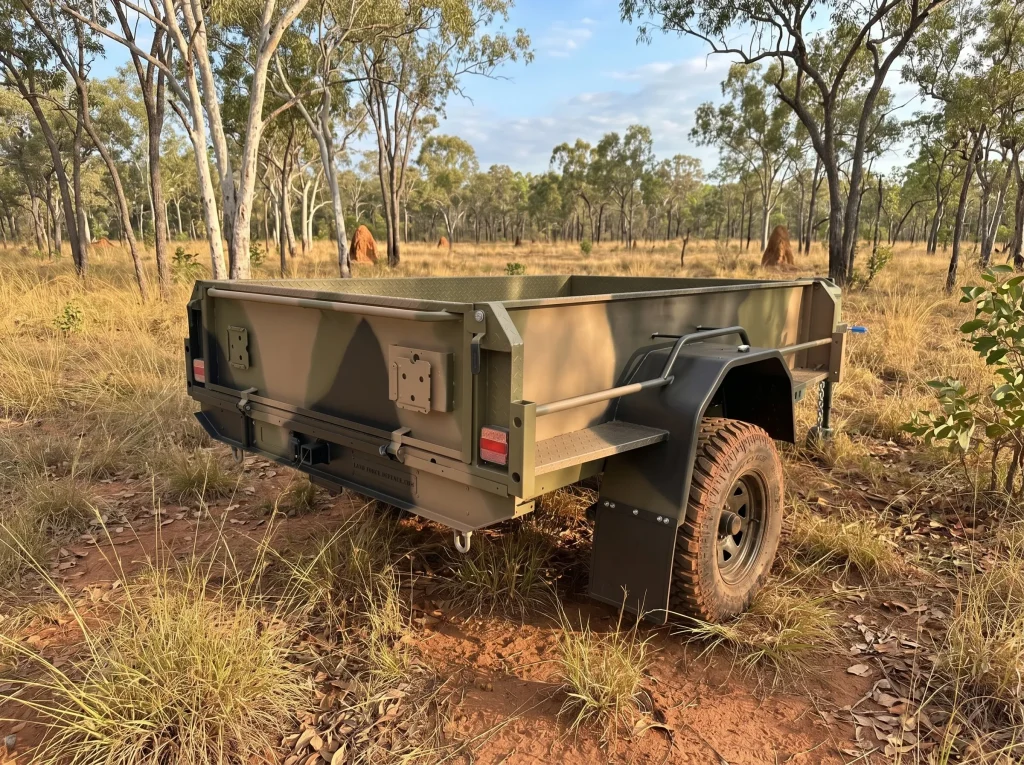

Unleash Your Off-Road Adventures with the CS-4.9 Single Axle Off Road Box Trailer.
Whether you are looking for a strong, durable work horse for transporting heavy loads like timber, soil and sand.
Or just want a heavy duty, customisable off road trailer to convert into an outback touring / camper trailer the CS -4.9 is the trailer for you.
Our reliable, innovative and cost effective design will allow you to explore remote areas that others cannot.
Don’t let anything hold you back from experiencing the thrill of off-road exploration.
The CS 4.9 Single Axle Off Road Box Trailer the perfect Off Road Trailer to explore even the most remote areas.
Our design team has carefully considered the restricted maneuvering space on off-road tracks, ensuring that the chassis design, dimensions, and overall ground clearance allow you to venture into areas that conventional off-road caravans and camper trailers cannot reach. Weighing in at just over 936kg, the CS-4.9 is lighter than many tandem axle off-road trailers out there on the market with a similar payload capacity.
The Heavy Duty single axle, coil spring independent suspension design offers a multitude of benefits, including greater suspension articulation, exceptional ground clearance and stability off-road.
By keeping the trailer dimensions within the width of most tow vehicles, we have increased the maneuverability off-road through tight areas, such as narrow tree-lined outback tracks or tight, twisting mountain roads. Furthermore, maintaining the trailer dimensions in line with the tow vehicle also improves vehicle handling and fuel efficiency by reducing the amount of wind and drag you are likely to encounter during higher-speed on-road travel.
DESIGN FEATURES
The CS – 4.9 comes with a fully powder coated 125 x 75 x 4mm Duragal chassis and hot dipped galvanised tub.
Powder Coat Colour Options:
- ARMY GREEN
- GRAPHITE GREY
- ANTARCTIC WHITE
- BLACK ONYX PEARL
- PRO TEXTURE BLACK
Canvas Colour Options:
- ARMY GREEN
- LIGHT GREY
- BLACK
The internal tub measurements are 2.4m long x 1.5m wide with extra height 450mm sides.

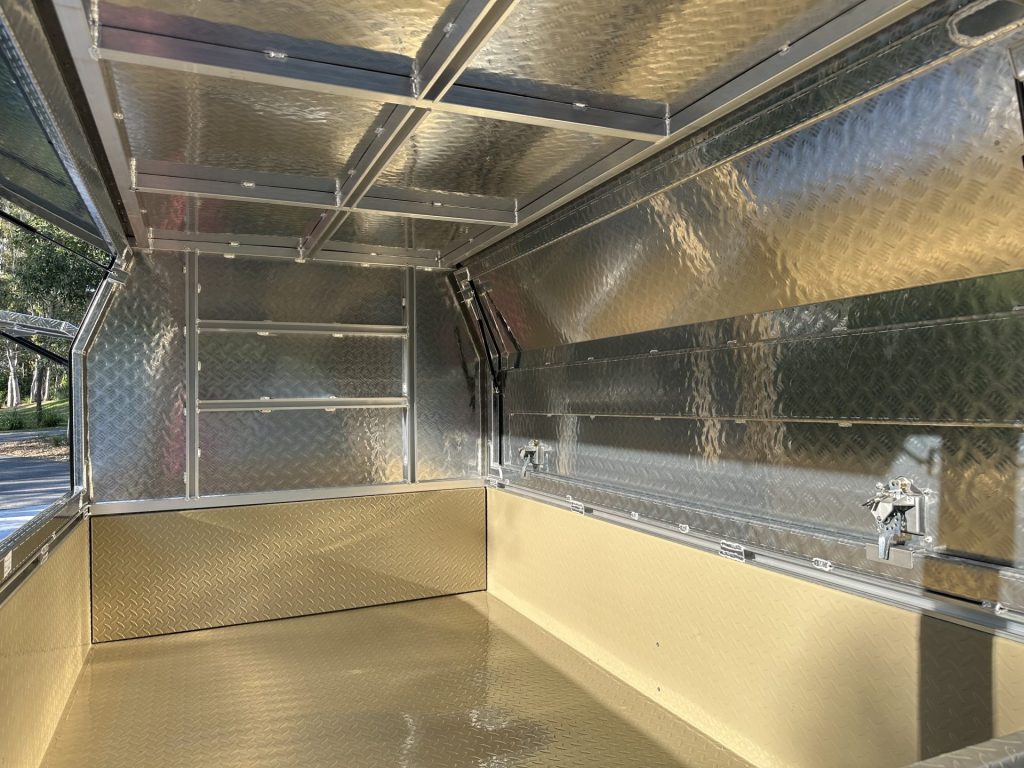

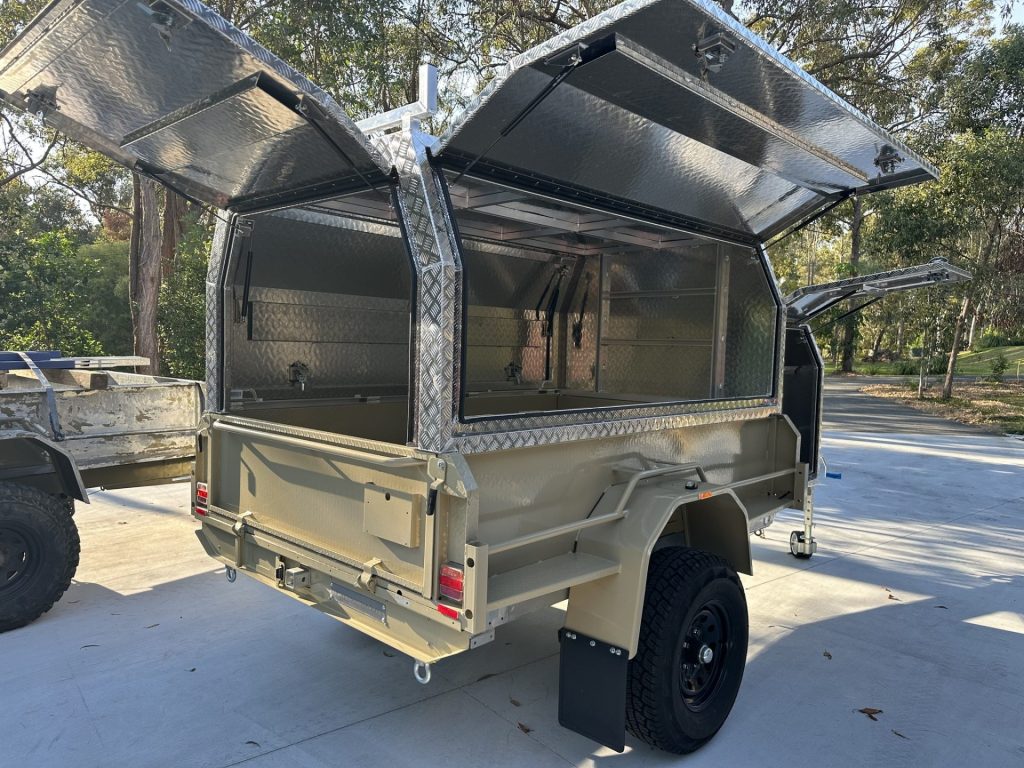

This also includes a 600mm High Removable Cage and Height Adjustable Ladder Racks. (Optional canvas cover and support frames)
As well as front and rear, drop down tail gates and full length side steps for easy roof top access.

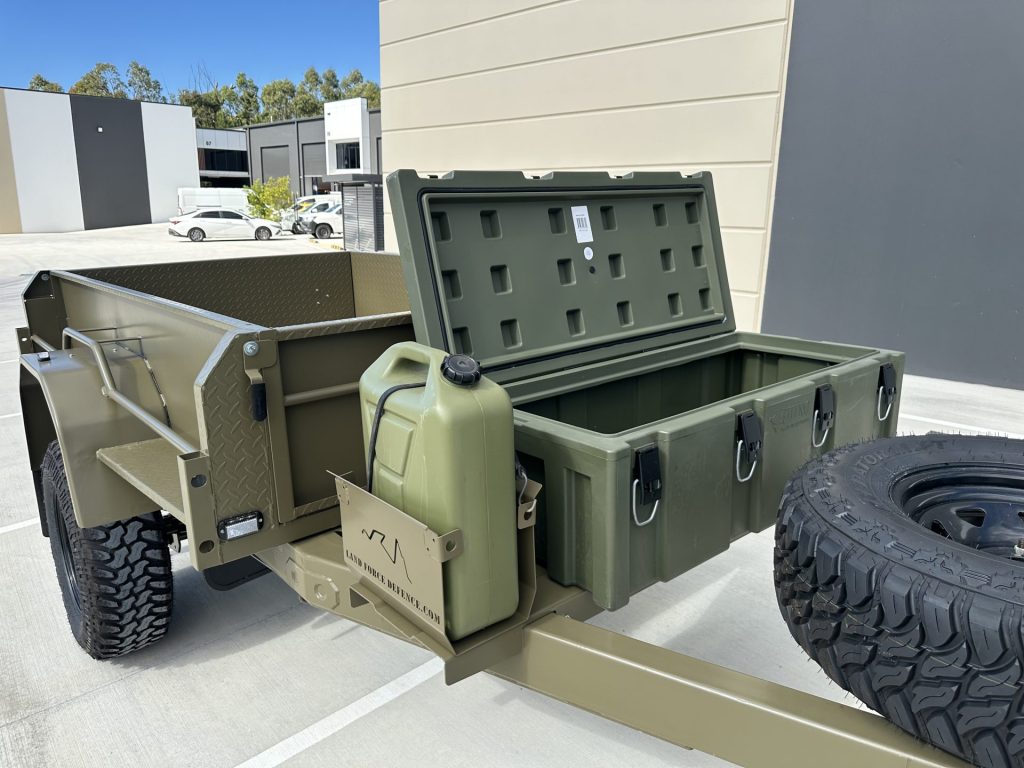

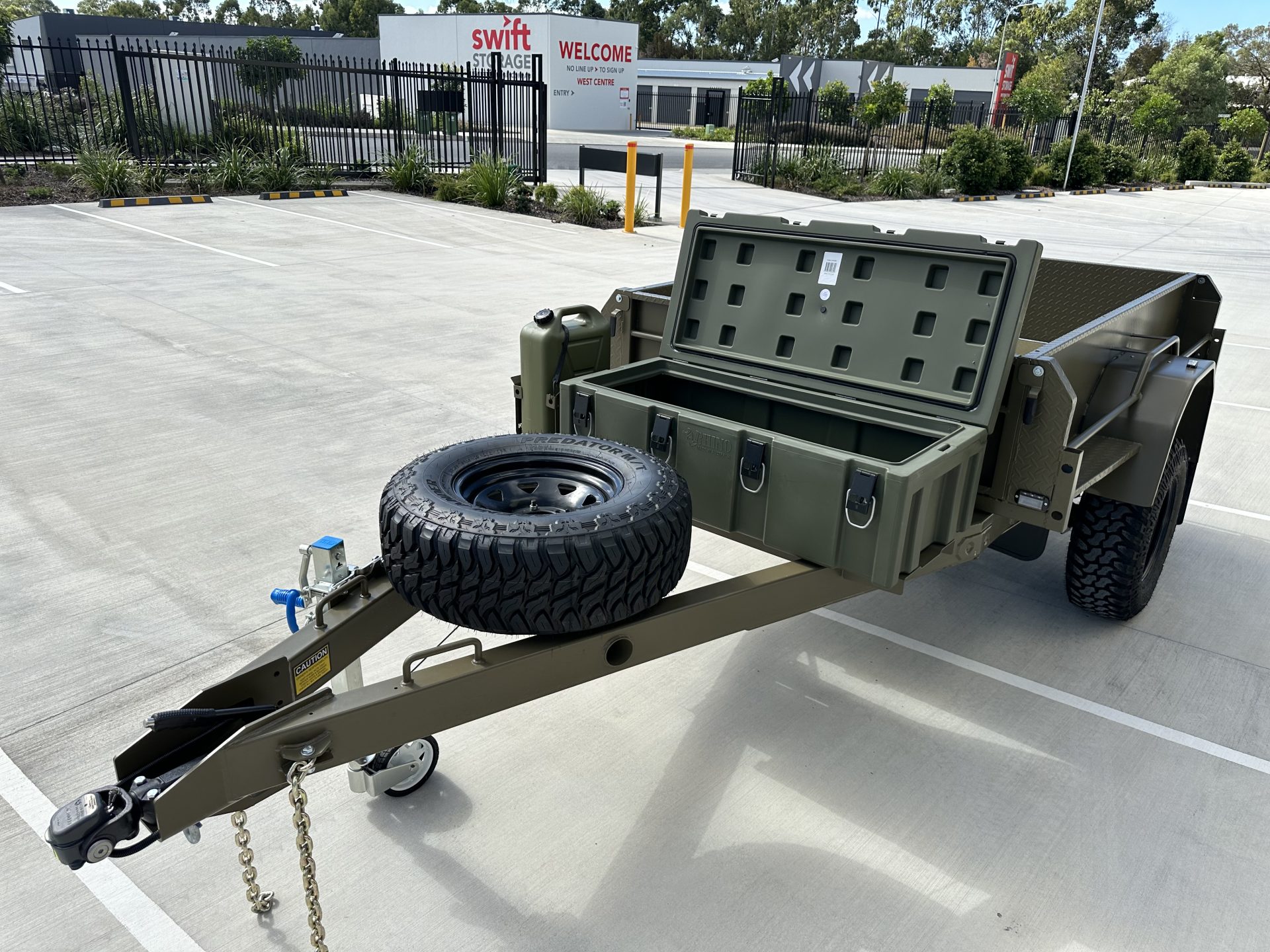

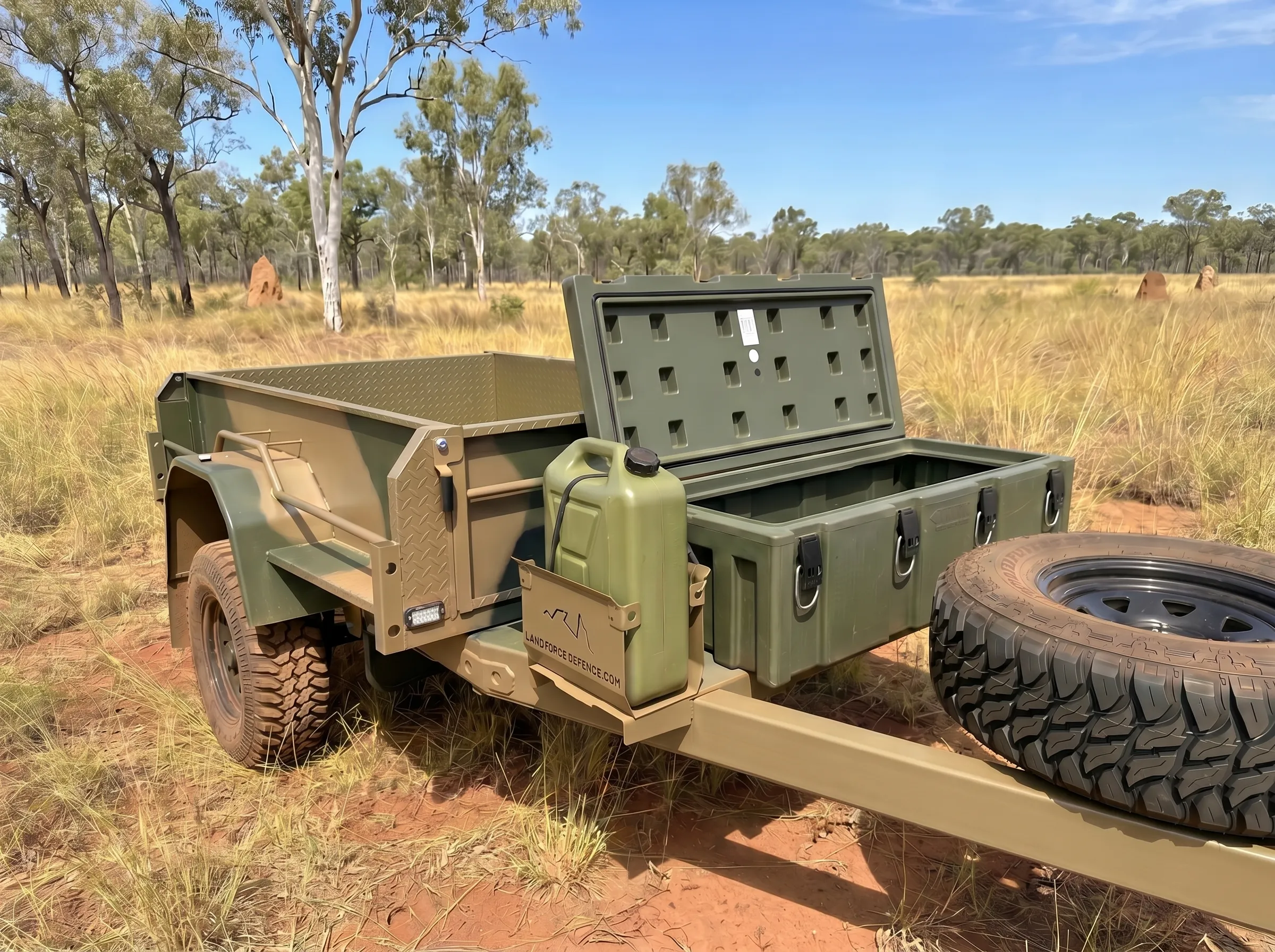

At the front of the trailer we have a draw bar mounted spare tyre, optional side jerry can mount and a water proof 187 ltr storage box.
Cruise Master DO – 35 Off Road Coupling with hand brake,Draw bar grab handles and 800mm swing up jockey wheel.
TRAILER CHASSIS
One of the main design features of our trailer frame is the modified Land Force Defence Military Transport Trailer Chassis. Which uses 125 x 75mm heavy duty chassis rails that run the full length of the trailer chassis giving the body and sub frame maximum support as it negotiates rough off road terrain. The 350 grade steel chassis is made of laser cut box section cross members and sealed rectangular hollow section steel allowing for easy wash down and cleaning, with no closed in areas where mud, sand and salt can get trapped and cause corrosion.
PLEASE NOTE: The images shown below are of our larger military transport trailer tandem axle chassis.
The CS – 4.9 single axle chassis is the same size, uses the same construction and design. But has a single independent coil spring assembly rather than tandem, leaving room at the rear of the chassis for an extra optional 80 ltr water tank.

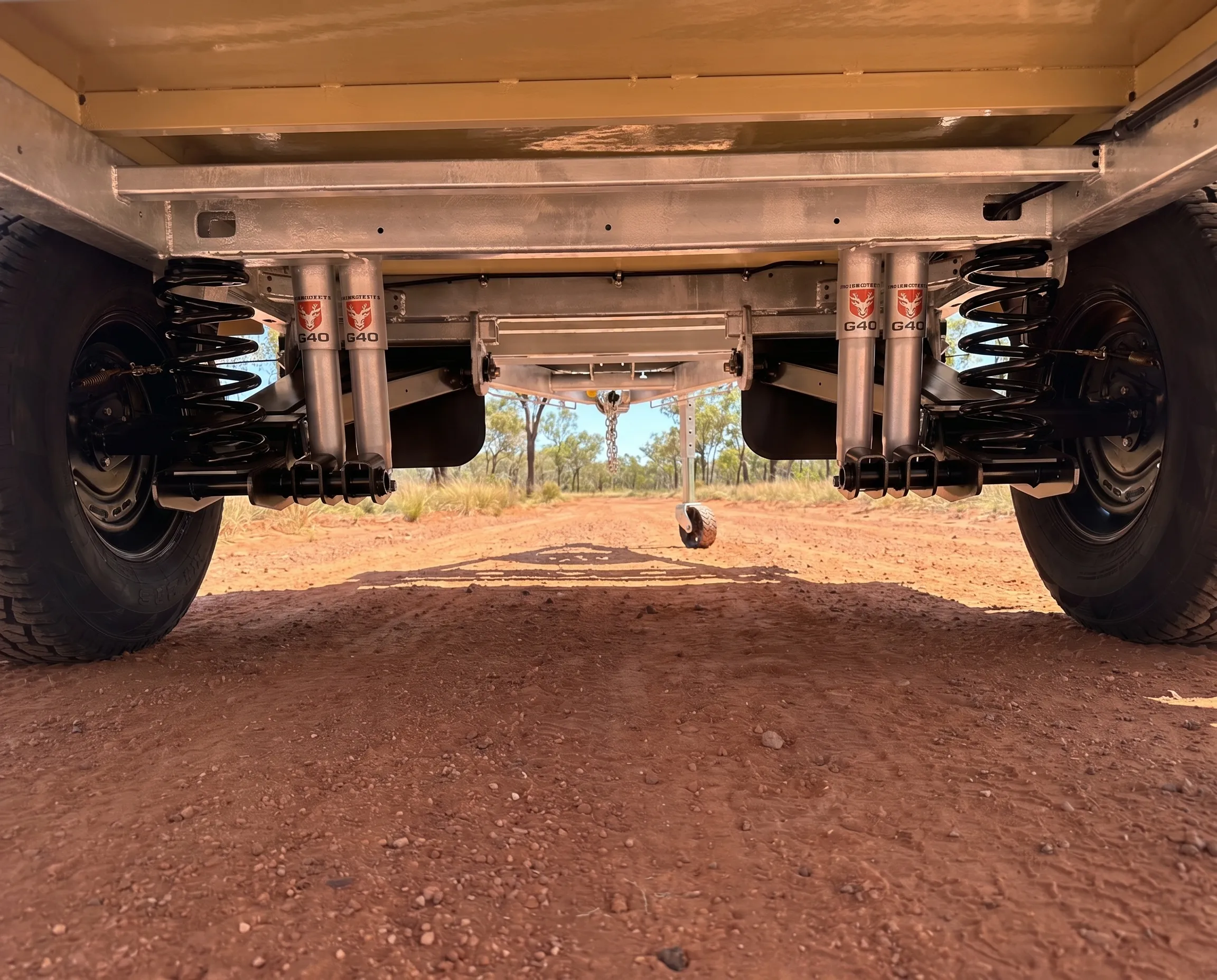

COIL SPRING SUSPENSION
With its Heavy Duty design, The Land Force Defence coil spring suspension system is the go-to option for those seeking the best all-terrain suspension for their Off Road Trailer. Our experienced in-house engineering team has meticulously crafted the entire system to provide unparalleled performance in even the toughest of conditions. This makes the CS 4.9 Off Road Trailer an ideal choice for anyone who needs a trailer that can stand up to heavy-duty off-road use and withstand harsh outback conditions in remote areas. With its robust 63mm stub axle, extra-large 2 or 3.3T VC bearing combination, premium twin shock absorbers, and lockable toe and camber adjustment, you can enjoy peace of mind knowing that your trailer is built to last. And, if your needs change over time, the interchangeable suspension components can be easily upgraded to accommodate your changing requirements. With the option to upgrade to spring rates and disc brakes variants, the CS 4.9m provides versatility and longevity, making it an ideal choice for anyone who requires a reliable, heavy-duty off-road trailer.
TRAILER SIZE :
- Overall Vehicle Length 4.9 mtrs.
- Overall Trailer width 2.1m
- Trailer internal dimensions 2.4m Long x 1.5m Wide x 450mm High
- Tray height approximately 800 mm. high depending on tyre size.
- Cage Height : 600mm.
- TARE: 936 kg.
- ATM: 2,800Kgs
- Ball Weight: 126 kg.
MAIN CHASSIS & UNDER BODY
- Cruise Master DO – 35 Off Road Trailer Hitch.
- Full length 6.7 mtr, 125 x 75 x 4mm Steel Chassis.
- 1.8 mtr frontal draw bar length.
- Interlocking chassis cross members.
- Trailer hand brake cables.
- Front hand brake lever bash plate.
- Front D Shackle recovery point.
- Manutec, Swing Down Jockey Wheel.
- Draw bar tool box mounting tray.
- 2 – 80ltr under deck water tank mounts.
TRAILER COLOUR OPTIONS
- ARMY GREEN
- GRAPHITE GREY
- ANTARCTIC WHITE
- BLACK ONYX PEARL
- PRO TEXTURE BLACK
TRAILER RUNNING GEAR
- 1 – Land Force Defence 2,200 kg, 2,600 kg or 2,850 kg Independent Coil Spring Suspension unit.
- 2 – 12 inch electric drum breaks.
- 4 – Heavy duty large bore off road shock absorbers.
- Or 2 Remote reservoir mono tube shock absorbers.
- 125 x 75 x 4mm Powder coated trailer chassis.

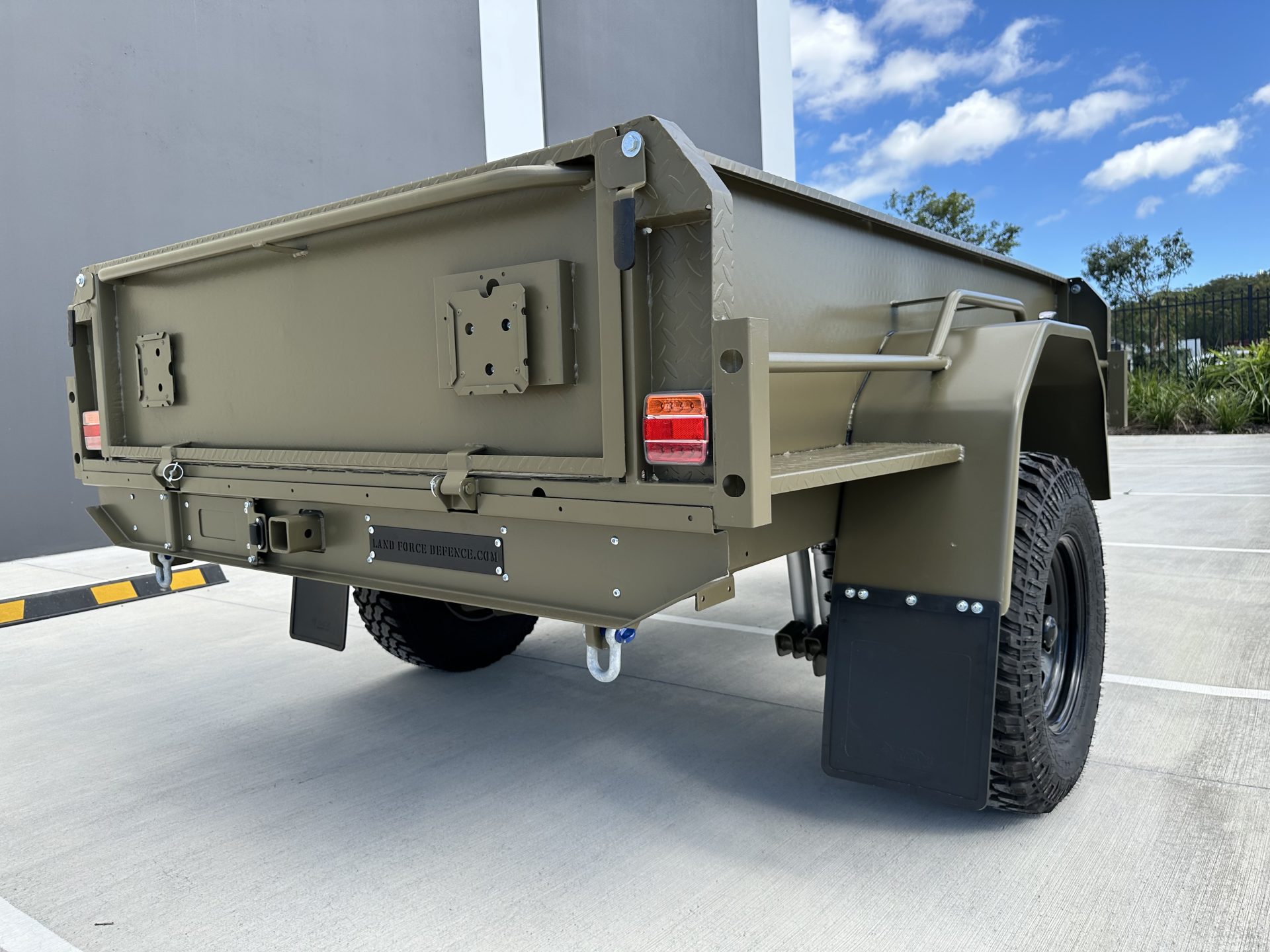

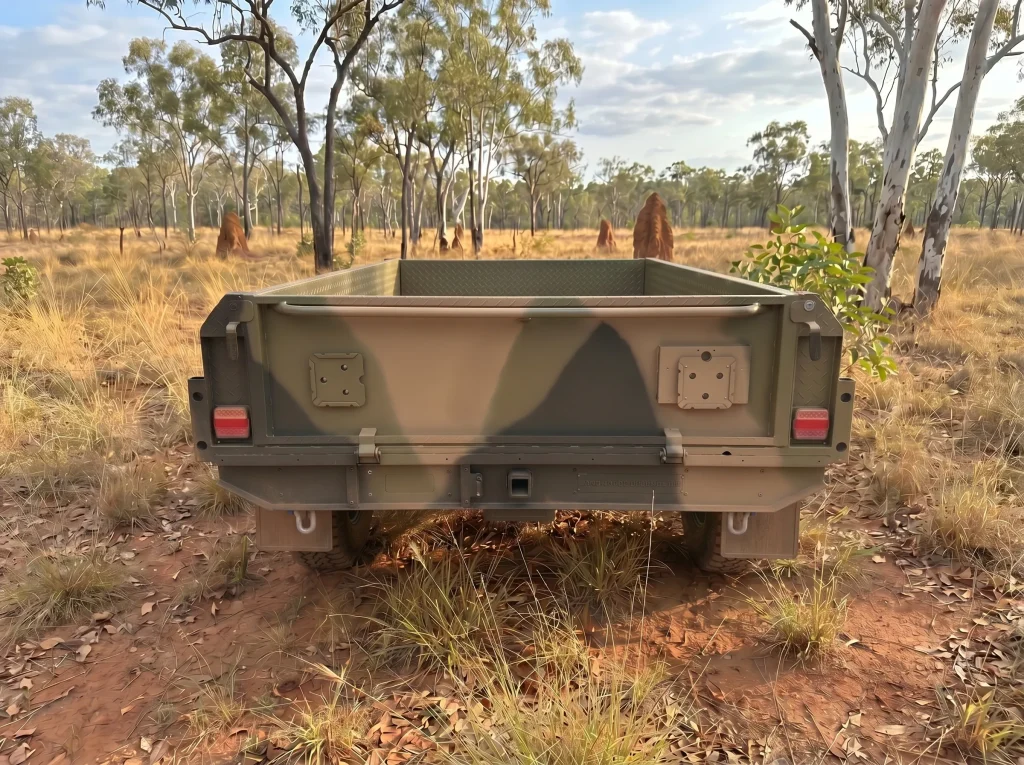

MAIN CHASSIS REAR
- 2 LED trailer lamps.
- Rear central recovery point.
- Twin rear left and right recovery points.
WHEELS & TYRES
- 3 – 265 / 7 5 / R 16. All terrain tyres.
- 3 – 5 stud Land Cruise zero offset steel rims.
CS 4.9 OFF ROAD TRAILER OPTIONAL ACCESSORIES
- 187 Ltr Top Opening Tool Box. (Polly Cargo Case)
- Canvas cover and support frames.
- 2 – Optional 80 ltr water tanks.
- Draw bar mounted jerry can mount.
- 2 – 80ltr water tanks.
- Roof Rack cross frame for roof top tent mounting options.
- Axe Shovel & Mattock mounting frame.
- 50mm dust reduction air pressurisation snorkel.
Optional External Battery Management System, Mounted Into Front Cargo Case.
- Battery Monitoring Display.
- 400Watt 240v Inverter.
- 4 point Switch Panel.
- Solar Charge Input.
- Twin Accessory & Twin USB Charging Points.
- Twin 12v Andersen Plug Outlets.
- 120 Ah Deep Cycle Battery.
- Single Battery Tray.
- Optional DBL Battery Tray.
- Optional 125 Ah Lithium Battery.
- Red Arc Battery Charger.
